Subject area: VEHICLE

Overview

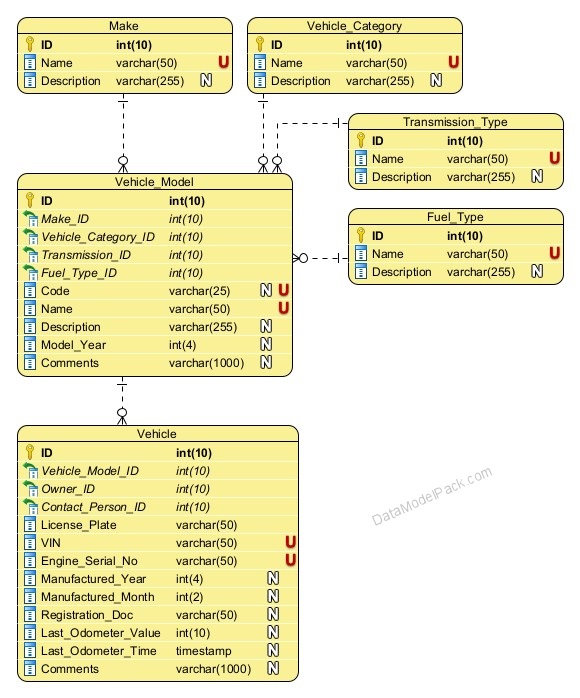

The Logical Data Model of the VEHICLE Subject Area includes the following entities:

Entity: VEHICLE

This entity records information about all the Vehicles for which was created at least one Order at the Car Service Shop.

Attributes
ID	PRIMARY KEY
Vehicle_Model_ID	Lookup for the Vehicle Model assigned to Vehicle. NOT NULL
Owner_ID	Lookup for the Customer who is the Owner of the Vehicle. NOT NULL
Contact_Person_ID	Lookup for the Customer who is the Contact Person for the Vehicle. The Vehicle Owner and the Vehicle Contact Person can be the same Customer. NOT NULL
License_Plate	Vehicle License Plate. NOT NULL
VIN	Vehicle Identification Number. NOT NULL UNIQUE. Cannot have two Vehicles with the same Vehicle Identification Number.
Engine_Serial_No	Engine Serial Number. NOT NULL UNIQUE. Cannot have two Vehicles with the same Engine Serial Number.
Manufactured_Year	The Year when Vehicle was manufactured.
Manufactured_Month	The Month when Vehicle was manufactured.
Registration_Doc	Registration Document that certifies the Vehicle Owner
Last_Odometer_Value	Vehicle's odometer last read value. Example:'190 000 km'
Last_Odometer_Time	Timestamp when the Vehicle's odometer was read.
Comments	Internal notes used for clarifications on record content.

Entity: VEHICLE_MODEL

This entity records the Vehicle Models existent in the market.

Attributes
ID	PRIMARY KEY
Make_ID	Lookup for the Make (Company) who manufactured the Vehicle Model. See Entity: MAKE for more information. NOT NULL
Vehicle_Category_ID	Lookup for the Vehicle Category. See Entity: VEHICLE_CATEGORY for more information. NOT NULL
Transmission_ID	Lookup for the Vehicle Transmission type: 'Manual', 'Automatic', etc. See Entity: TRANSMISSION_TYPE for more information. NOT NULL
Fuel_Type_ID	Lookup for the Vehicle Fuel Type: 'Electric', 'Petrol', 'Diesel' etc. See Entity: FUEL_TYPE for more information. NOT NULL
Code	Vehicle Model Code. UNIQUE
Name	Vehicle Model Name. NOT NULL UNIQUE
Description	Vehicle Model description.
Model_Year	Year when the Vehicle Model was released.
Comments	Internal notes used for clarifications on record content.

Entity: VEHICLE_CATEGORY

Vehicle category list. Example: 'Hatchback', 'SUV', 'Commercial Vehicle' etc.

Attributes
ID	PRIMARY KEY
Name	Vehicle Category name. NOT NULL UNIQUE
Description	Vehicle Category description

Entity: MAKE

Vehicle Make list. Example: 'Mercedes', 'BMW', 'Ford', 'Volkswagen' etc.

Entity: FUEL_TYPE

Vehicle fuel type list. Example: 'Electric', 'Petrol', 'Diesel' etc.

Attributes
ID	PRIMARY KEY
Name	Fuel Type name NOT NULL UNIQUE
Description	Fuel Type description

Entity: TRANSMISSION_TYPE

Vehicle Transmission Type list. Example: 'Manual', 'Automatic' etc.

Attributes
ID	PRIMARY KEY
Name	Transmission Type name NOT NULL UNIQUE
Description	Transmission Type description
